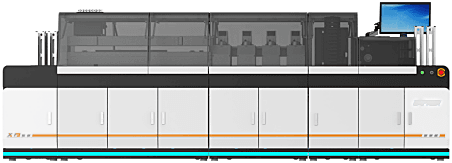

MLP ProCard
Centralized eID personalization machine for high-volume card issuance.
The MLP ProCard is a fully automatic centralized card personalization line that integrates UV inkjet and laser technology on one platform. Its modular configuration is built to the throughput a programme needs — 300, 450 or 600 cards an hour — and it issues secure eID cards with full-range colour printing on polycarbonate.
600 CPH
Top production speed
1200 dpi
Colour printing
5 colours
CMYK + varnish
256
Laser grey levels
An industrial line for national card programmes
Multi-Layer Personalization
UV inkjet and laser technology integrated on one platform, personalizing every layer of the polycarbonate card.
What's MLP colour printing?Full-Range Colour Printing
High-speed, high-resolution colour inkjet at 600 dpi as standard and up to 1200 dpi, cured by UV LED.
Front and Back Laser Engraving
256 grey-level fibre laser engraving on both sides, with MLI/CLI, tactile marks, micro text, barcodes and QR codes.
Multi-Encoding Station
High-speed contact and contactless chip encoding built into the line.
Advanced Card Handling
Card transport and printing engineered to hold the highest printing requirement across a long production run.
Modular and Flexible
The configuration is matched to the production volume each card programme needs.
One pass, six modules
A blank card is fed in at one end and leaves personalized, verified and stacked at the other, moving through the line automatically.
- 1FeedingBlank cards in
- 2Chip encodingChip data written
- 3Laser engravingData and portrait
- 4UV & varnishingColour and overlay
- 5QCQuality check
- 6CollectionFinished cards out
Technical specification
Personalization
7 items
- Process
- Colour inkjet printing with laser engraving
- Ink type
- 5 colours (CMYK + varnish)
- Colour printing resolution
- 600 dpi standard, up to 1200 dpi
- Curing system
- UV LED
- Laser module
- Fibre laser with air-cooling system
- 256 grey-level engraving
- Engraving features
- Front and rear side engraving
- MLI / CLI, tactile marks and micro text
- Barcodes and QR codes
- Encoding
- High-speed contact and contactless chip encoding
System
3 items
- Production speed
- 300, 450 or 600 cards per hour
- Card materials
- PC, PVC, PETG
- Power supply
- 220 V AC ±10%
- 50 Hz ±2 Hz
